TP-LINK TL-SG105 5-Port 10/100/1000Mbps Desktop Switch

+ Add to Wishlist

MYR99.00

Add To Cart

Brand: TP-LINK

  • Share

Get shipping estimates

Country
State
Shipping Method

  • 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Plug and play, no configuration needed
  • Supports 802.1p/DSCP QoS and IGMP Snooping functions

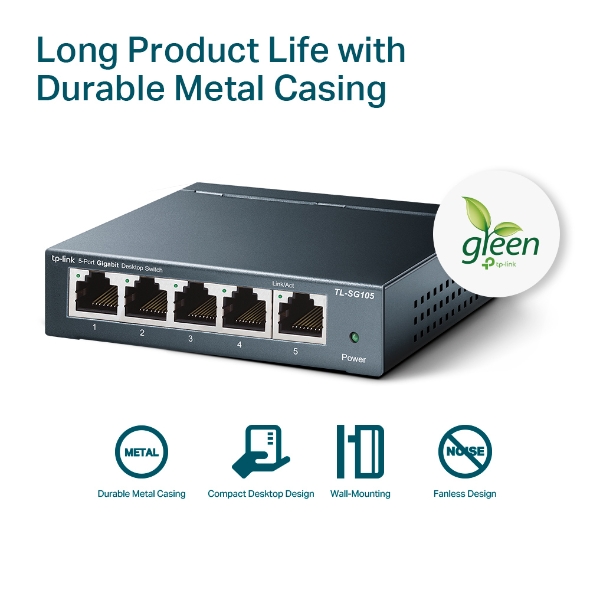

  • Durable metal casing, desktop/wall-mounting options, and a fanless design
  • IEEE 802.3x flow control provides reliable data transfer
  • Green Ethernet technology reduces power consumption



HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 5 V DC / 0.6A)
LEDSystem Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max. Power Consumption2.3 W (220 V/ 50 Hz)
Max. Heat Dissipation7.83 BTU/h

PERFORMANCE

Packet Forwarding Rate7.4 Mpps
MAC Address Table2K
Packet Buffer Memory1 Mb
Jumbo Frame16 KB

SOFTWARE FEATURES

Advanced FeaturesGreen Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transmission MethodStore and Forward

OTHERS

CertificationCE, FCC, RoHS
Package Content5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
