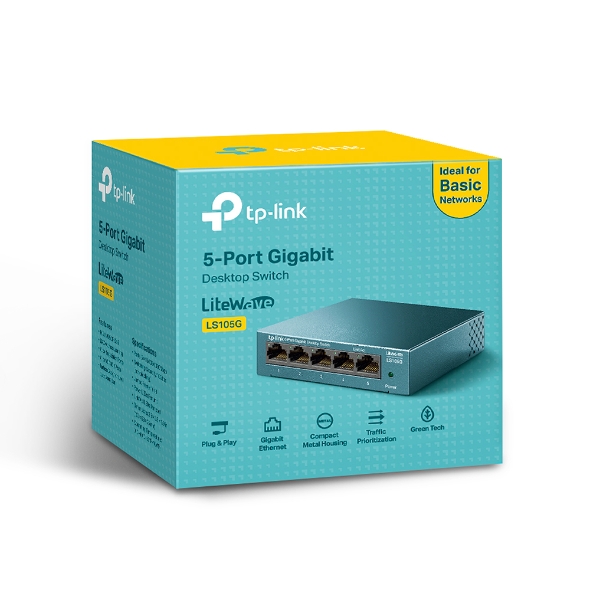

TP-LINK LS105G 5-Port 10/100/1000Mbps Desktop Switch

+ Add to Wishlist

MYR85.00

Add To Cart

Brand: TP-LINK

  • Share

Get shipping estimates

Country
State
Shipping Method

  • 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power

  • IEEE 802.3X flow control provides reliable data transfer

  • Steel housing, desktop or wall-mounting design

  • Support 802.1p/DSCP QoS function

  • Plug and play, no configuration needed



HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 5VDC / 0.6A)
LEDSystem Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max. Power Consumption3.57 W (220V/50Hz)
Max. Heat Dissipation12.17 BTU/h

PERFORMANCE

Packet Forwarding Rate7.4 Mpps
MAC Address Table2K
Packet Buffer Memory1 Mb
Jumbo Frame16 KB

SOFTWARE FEATURES

Advanced FeaturesGreen Technology
802.3X Flow Control
802.1P/DSCP QoS
Transmission MethodStore and Forward

OTHERS

CertificationCE, FCC, RoHS
Package Content5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
