Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system

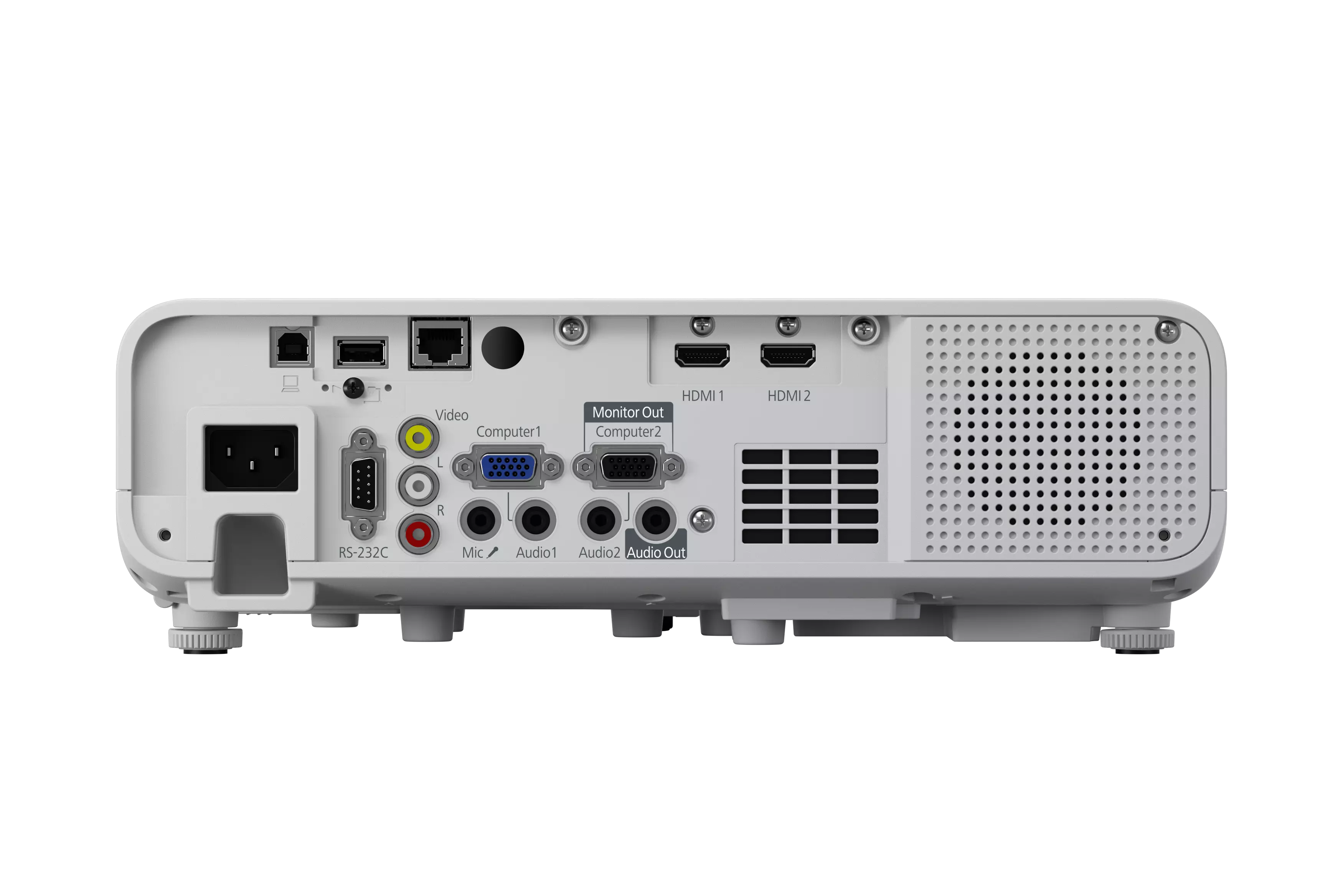

Connectivity:

Analog Input:D-Sub 15Pin: 2 Composite: RCA x 1 (Yellow)Digital Input:HDMI: 2 (HDCP 2.3)Analog Output:D-Sub 15Pin: 1 (Black) (in common with Computer 2)Audio Input:RCA: 1 (White, Red) Stereo Mini Jack: 2Audio Output:Stereo Mini Jack: 1Mic I/O:Mic In: 1 (Stereo Mini)Control I/O:RS-232C: D-Sub 9pin x 1Others:USB Type A: 1 (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply) USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network I/O:Wired LAN: RJ45 x 1 (100Mbps) Wireless: Built-in and Optional (Using ELPAP11)

Contrast Ratio:

Contrast Ratio:Over 2,500,000 : 1

Screen Size (Projected Distance):

Standard Size:60" screen 180 cmZoom : Wide:30" to 300" [88 cm to 909 cm]

Geometric Correction:

Vertical/Horizontal Keystone:±30° / ±30°Quick Corner:Yes (Manual)

Operating Temperature:

Operating Temperature:0 – 2286m (0-7500ft): 0°C - 40°C (32°F - 104°F); 20%-80% Humidity, No Condensation Over 2286m(7500ft): 0°C - 35°C (32°F - 95°F); 20%-80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period:Less than 9 seconds (Epson logo), Warm-up Period: 30 secondsQuick Start-Up:Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Internal Speaker(s):

Sound Output:16W Monaural

Weight:

Weight:Approx. 4.2kg

Air Filter:

Type:Electrostatic FilterMaintenance Cycle:20,000 hours

Fan Noise:

Fan Noise (Normal / Eco):37dB / 27dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):299 x 325 x 90 mm

Brightness2:

Colour Light Output:4,500lm White Light Output (Normal/Extended) 4500lm / 3100lm

Image:

Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Speed for Each mode :Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps4 IEEE 802.11g (2.4GHz): 54 Mbps4 IEEE 802.11n (2.4GHz): 72.2 Mbps4 IEEE 802.11a (5GHz): 54 Mbps4 IEEE 802.11n (5GHz): 150.0 Mbps4 IEEE 802.11ac (5GHz): 325Mbps4 Access Point(Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps4 IEEE 802.11n (2.4GHz): 72.2 Mbps4 IEEE 802.11a (5GHz): 54 Mbps4 IEEE 802.11n (5GHz): 150.0 Mbps4 IEEE 802.11ac (5GHz): 325Mbps4Supported Mode :Infrastructure, Access Point (Wi-Fi Direct) Wireless LAN Security Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Wireless Specifications (Optional Wireless LAN):

Supported Speed for Each Mode:Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps4, IEEE 802.11n (2.4GHz): 72.2Mbps4, IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4Supported Mode:Access Point (Wi-Fi Direct)Supported Security Type:WPA2-PSK (AES)

Main Parts Specification:

LCD:Size: 0.59” (C2Fine) Resolution: WXGA Projection Lens Type: Optical Zoom (Manual) / Focus (Manual) F-Number: 1.51 – 1.77 Focal Length: 18.2 – 29.1mm Zoom Ratio: 1.0 – 1.62 (Optical Zoom) Throw Ratio: 1.41 – 2.26

Lightsource:

Type:Laser DiodeLight Source Life (Normal/ Quiet/ Extended):20,000 / 20,000 / 30,000 hrs

Direct Power On / Off:

Direct Power On / Off:Yes

Power Supply Voltage:

Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz Power Consumption LD On (Normal / Extended): 260W / 191W Standby (Network On / Off): 2.0W / 0.5W
