All Specifications

Display

Brightness (ANSI lumens)             3200

Native Resolution            4K UHD (3840×2160)

Native Aspect Ratio         16:9

Contrast Ratio (FOFO)    10,000:1

Display Color      30-bit (1.07 billion colors)

Light Source       Lamp

Light Source Life               a. Normal 4000 hrs ,b. ECO 10000 hrs ,c. SmartEco 8000 hrs ,d. LampSave 15000 hrs

Optical

Throw Ratio        1.127~1.46

Zoom Ratio         1.3x

Lens       F/#=1.94~2.12; f=11.9~15.5 mm

Projection Offset (Full-Height)   110%

Keystone Adjustment    2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees


Rec. 709 Coverage           96%

Picture Modes  3D ,Bright ,Cinema ,Game ,HDR ,HDR Game ,HDR10 ,HLG ,Living Room ,Sport ,User

Compatibility

Input Lag              16.7 ms (1080p@60Hz),16.7 ms (4K@60Hz),4.2 ms (1080p@240Hz),8.3 ms (1080p@120Hz)

Resolution Support         VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency     15K~135KHz

Vertical Scan Rate            23~120Hz

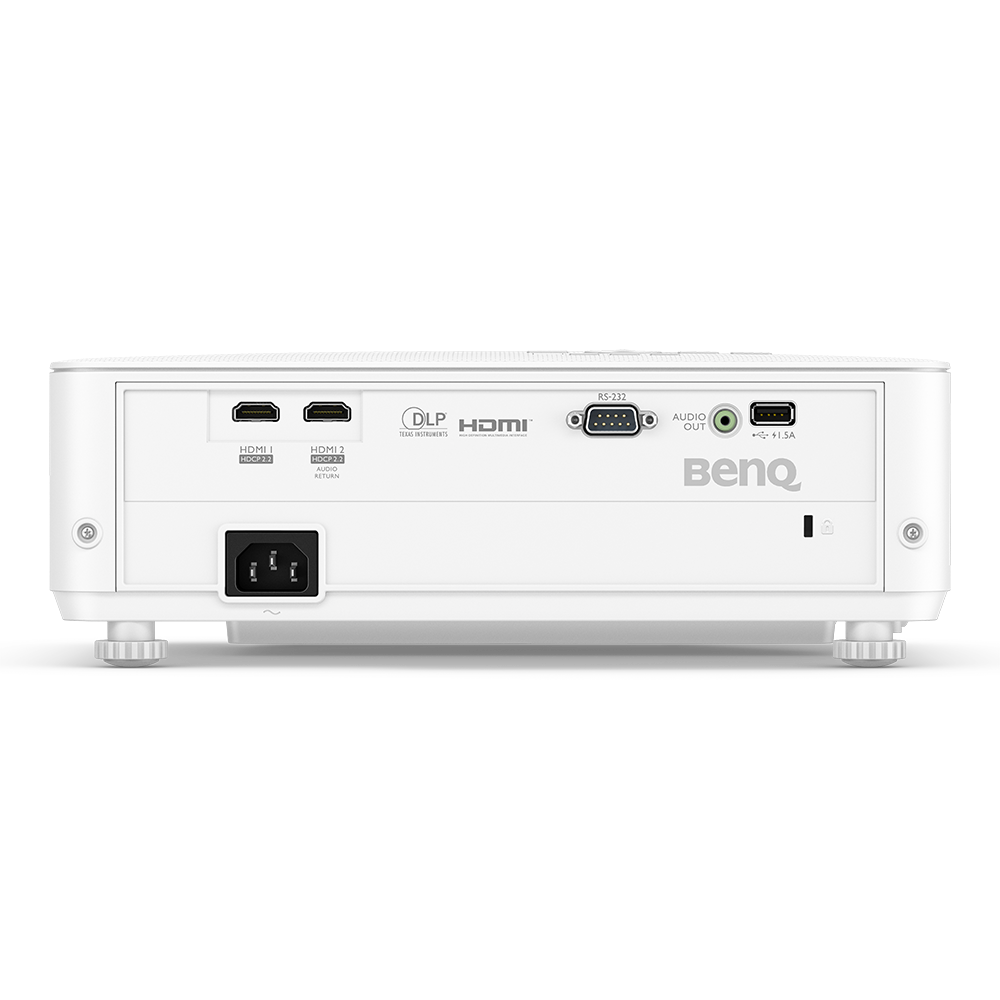

I/O Interface

HDMI in                HDMI-1 (2.0b/HDCP2.2) ,HDMI-2 (2.0b/HDCP2.2)

USB Type A         (x1) ,USB Type A-1 (2.0/Power Supply1.5A)

RS232 in (DB-9pin)          (x1)

Audio

Speaker (x1) ,5W Chamber

Audio out (3.5mm Mini Jack)       (x1)

HDMI Audio Return         Yes, eARC, Dolby Atmos

Environment

Operating Temperature 0~40℃

Power Supply    AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)          310W

Stand-by Power Consumption    <0.5W

Acoustic Noise (Typ./Eco.)(dB)   34/28 dBA

Accessories

Remote Control w/ Battery          RCV013

Power Cord (by region) x1 (1.8M)

3D Glasses          (Optional) ,DGD5

Quick Start Guide             (x1) 21L

Warranty Card (by region)            Yes

Universal Ceiling Mount (Optional) ,CM00G3

Dimension & Weight

Dimensions (WxHxD) (mm)         312 x110 x 246

Net Weight (kg) 3.1

Dimensions (WxHXD) (inch)         12.2 x 4.3 x 9.6

Net Weight (lb) 6.8

Projection System

Projection System           DLP
