VA3209-MH

32” FHD Monitor with Built-In Speakers

SuperClear® IPS panel

Full HD 1080p resolution

3 side borderless bezel

75hz Variable Refresh Rate eliminates screen tearing and reduce stuttering

Eye-care technology for comfortable viewing

OVERVIEW

The ViewSonic VA3209-MH is a 32” Full HD monitor featuring HDM and VGA inputs for business and home use. The optimal screen performance and comfortable viewing without tearing or stuttering is delivered through adaptive sync, eye-care technology, and various ViewMode presets. Simply expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at a low power consumption.

SPECIFICATIONS

Display

Display Size (in.): 32

Viewable Area (in.): 31.5

Panel Type: IPS Technology

Resolution: 1920 x 1080

Resolution Type: FHD (Full HD)

Static Contrast Ratio: 1,200:1 (typ)

Dynamic Contrast Ratio: 50M:1

Light Source: LED

Brightness: 250 cd/m² (typ)

Colors: 16.7M

Color Space Support: 8 bit true

Aspect Ratio: 16:9

Response Time (Typical GTG): 4ms

Response Time (GTG w/OD): 4ms

Viewing Angles: 178º horizontal, 178º vertical

Backlight Life (Hours): 30000 Hrs (Min)

Curvature: Flat

Refresh Rate (Hz): 75

Adaptive Sync: Yes

Blue Light Filter: Yes

Flicker-Free: Yes

Color Gamut: NTSC: 72% size (Typ)

sRGB: 104% size (Typ)

Pixel Size: 0.364 mm (H) x 0.364 mm (V)

Surface Treatment: Anti-Glare (Semi-Glossy), Hard Coating (2H)

Compatibility

PC Resolution (max): 1920x1080

Mac® Resolution (max): 1920x1080

PC Operating System: Windows 10/11 certified; macOS tested

Mac® Resolution (min): 1920x1080

Connector

VGA: 1

3.5mm Audio Out: 1

HDM 1.4: 1

Power in: DC Socket (Center Positive)

Audio

Internal Speakers: 2.5Watts x2

Power

Eco Mode (Conserve): 23W

Eco Mode (optimized): 27W

Consumption (typical): 32W

Consumption (max): 35W

Voltage: AC 100-240V

Stand-by: 0.5W

Power Supply: External Power Adaptor

Additional Hardware

Kensington Lock Slot: 1

Controls

Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)

On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

Temperature: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing): 20% to 90%

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

Frequency Horizontal: 24 ~ 86KHz

Frequency Vertical: 48 ~ 75Hz

Video Input

Digital Sync: TMDS - HDM (v1.4)

Analog Sync: Separate - RGB Analog

Ergonomics

Tilt (Forward/Back): -5º / 20º''Weight (imperial)

Net (lbs): 16.1

Net Without Stand (lbs): 13.4

Gross (lbs): 20.3

Weight (metric)

Net (kg): 7.3

Net Without Stand (kg): 6.1

Gross (kg): 9.2

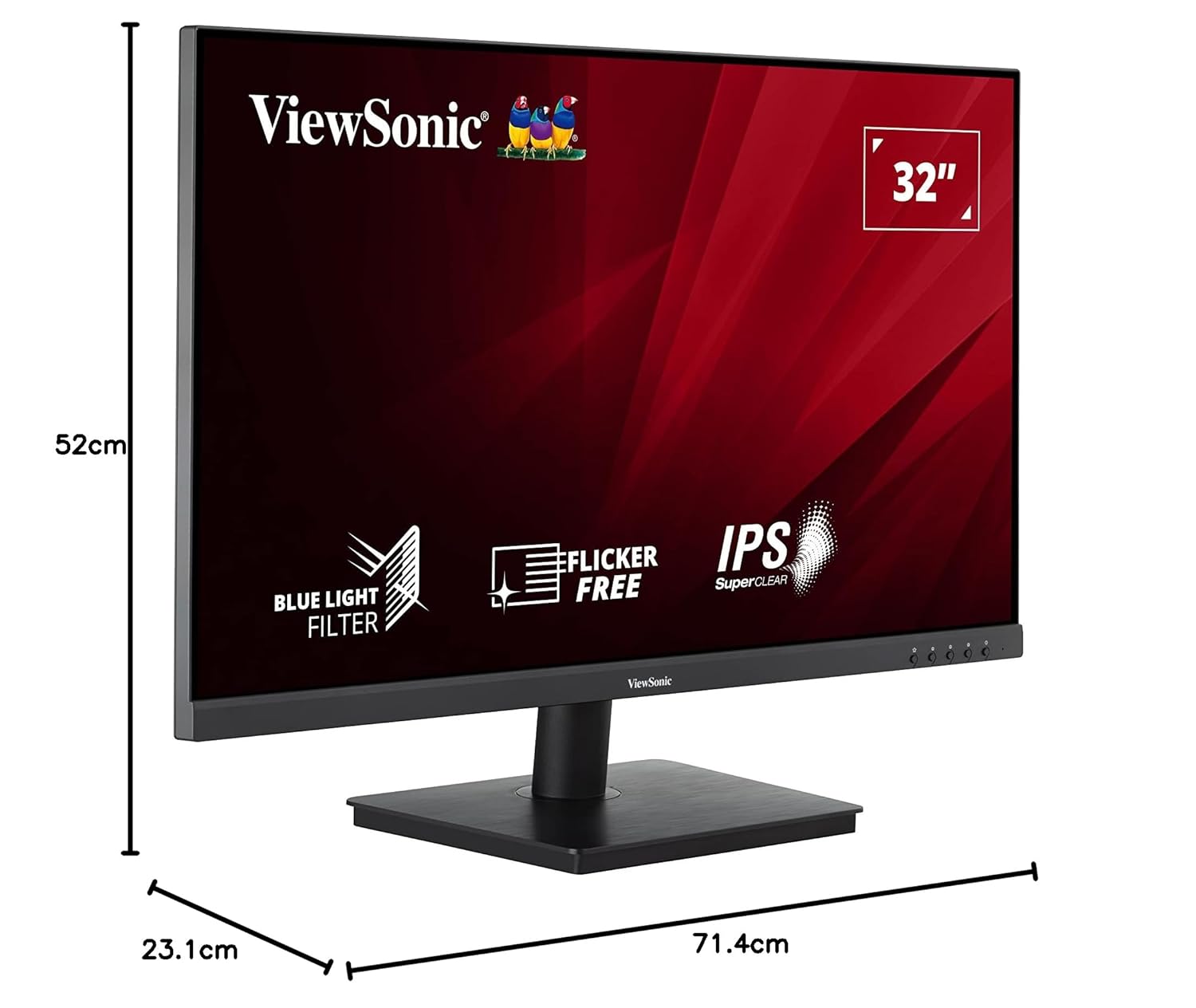

Dimensions (imperial) (wxhxd)

Packaging (in.): 30.3 x 20.1 x 4.9

Physical (in.): 28.1 x 20.5 x 9.1

Physical Without Stand (in.): 28.1 x 16.8 x 2.3

What’s in the box

1x VA3209-MH

1x HDM Cable

1x Power Cord Cable

1x User Manual
