TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Visit our Johor Bahru outlets: Kota Puteri, Plaza Pelangi & Paradigm Mall. Find your favourite laptops, PCs and IT products today!

Your cart is empty.

Continue Shopping

MYR109.00

No Variant ✓

Add To Cart

Brand: TP-LINK

Country

State

Shipping Method

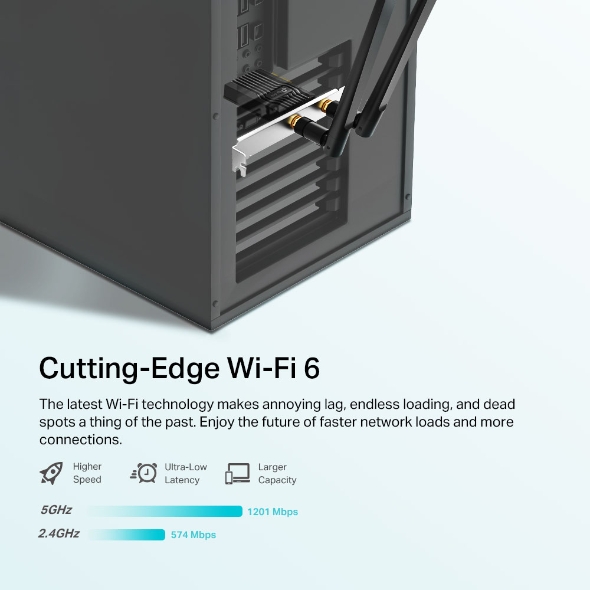

Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)^†‡
Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2**
Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards

HARDWARE FEATURES
Dimensions ( W x D x H )	4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm)
Antenna	Two High-Gain Dual Band Antennas
Chipset	Realtek Wi-Fi 6 Chipset

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2
WLAN Signal Rate	5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity	5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm
WLAN Transmit Power	5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes	Infrastructure mode
Wireless Security	Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS
Certification	CE, FCC, RoHS
Package Content	Archer TX20E Two High-Gain Dual Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements	Windows 11/10(64-bit) only
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
