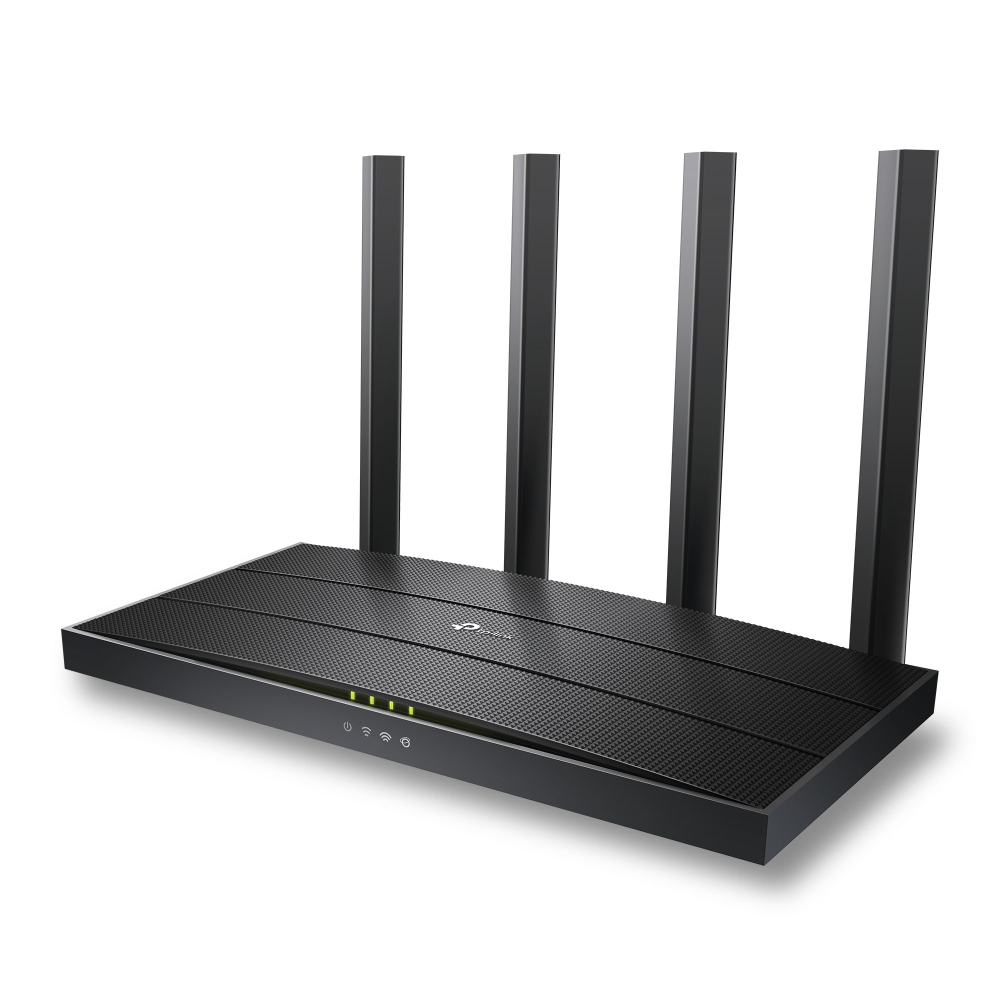

TP-LINK Archer AX10 AX1500 Wi-Fi 6 Router support Unifi,Time,Maxis

MYR199.00

Color

Brand: TP-LINK

  • Share

Get shipping estimates

Country
State
Shipping Method

  • Faster Wi-Fi 6—Get Next-Gen Wi-Fi speeds up to 1.5 Gbps
  • Triple-Core CPU—Instant response to all your network activity with a 1.5 GHz triple-core CPU.
  • Broader Coverage—4 Antennas and beamforming technology focus signal towards individual clients for broader coverage.†
  • Connect Dozens of Devices—More simultaneous connections and higher average throughput with OFDMA
  • Full Gigabit Ports—Take full advantages of broadband speeds up to 1 Gbps.
  • Easy Setup—Finish your network upgrade in minutes with Tether app
  • Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
WIRELESS
StandardsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi CapacityHigh
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working ModesRouter Mode
Access Point Mode
HARDWARE
Processor1.5 GHz Triple-Core CPU

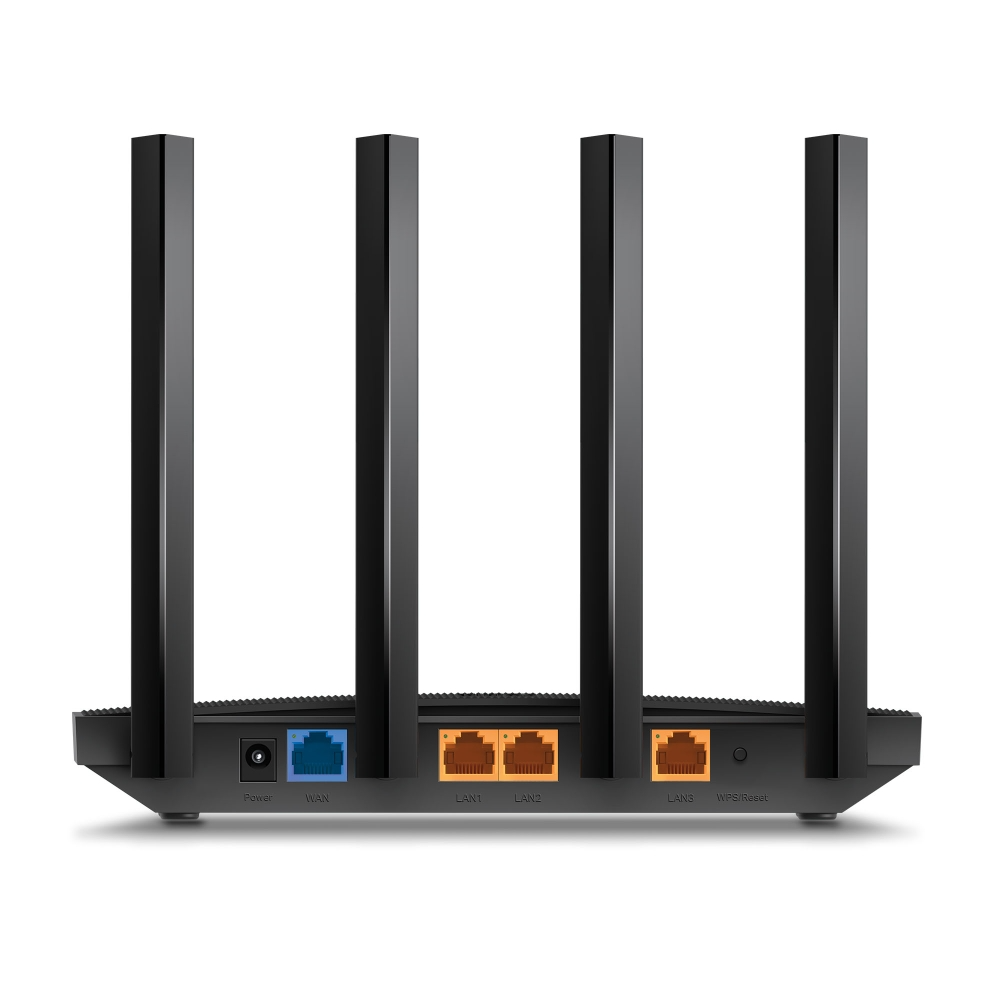

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports
ButtonsWPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power12 V ⎓ 1 A
SECURITY
WiFi EncryptionWEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN ServerOpenVPN
PPTP
SOFTWARE
ProtocolsIPv4
IPv6
Parental ControlsURL Filtering
Time Controls
WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceQoS by Device
Cloud ServiceAuto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT ForwardingPort Forwarding
Port Triggering
DMZ
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSTP-Link
NO-IP
DynDNS
ManagementTether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H)10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package ContentsWi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission PowerCE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
