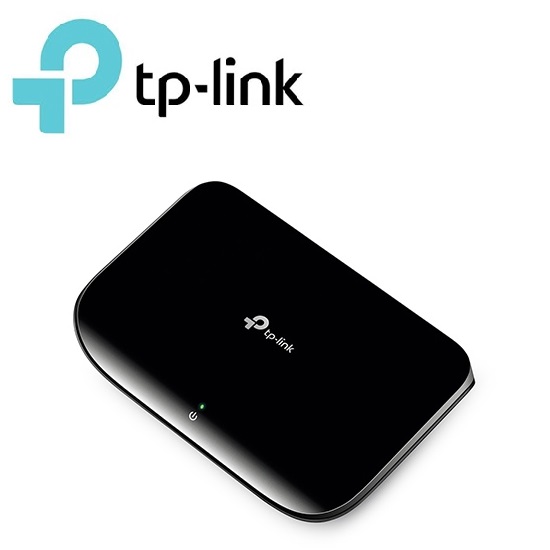

5-Port Gigabit Desktop SwitchTL-SG1005D
- 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 85%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required
HARDWARE FEATURES |
---|
Interface | 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
---|
Fan Quantity | Fanless |
---|
Power Consumption | Maximum: 3W (220V/50Hz) |
---|
External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
---|
Dimensions ( W x D x H ) | 5.5*3.5*0.9 in. (140*88*23 mm) |
---|
SOFTWARE FEATURES |
---|
Transmission Method | Store and Forward |
---|
Advanced Functions | Green Technology, saving power up to 85% 802.3X Flow Control, Back Pressure |
---|
OTHERS |
---|
Certification | FCC, CE, RoHs |
---|
Package Contents | 5-Port Gigabit Desktop Switch TL-SG1005D Power Adapter Installation Guide |
---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
---|
