PERFORMANCE
Processor Intel Core i3-12100, 4C (4P + 0E) / 8T, P-core 3.3 / 4.3GHz, 12MB
Graphics Integrated Intel UHD Graphics 730
Chipset Intel B660
Memory 1x 4GB UDIMM DDR4-3200
Memory Slots Two DDR4 UDIMM slots, dual-channel capable
Max Memory Up to 64GB DDR4-3200
Storage 256GB SSD M.2 2280 PCIe 3.0x4 NVMe Opal 2.0
Optane Memory None
Storage Support Up to two drives, 1x 2.5"/3.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • 3.5" HDD up to 2TB • M.2 SSD up to 1TB
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek ALC623-CG codec
Speakers None
Power Supply 180W 85%
DESIGN
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots • One PCIe 3.0 x1, low-profie (length < 167.65mm, height < 68.90mm)
• One PCIe 4.0 x16, low-profie (length < 167.65mm, height < 68.90mm)
• Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand None
Form Factor SFF (7.4L)
Dimensions (WxDxH) 100 x 308 x 274.8 mm (3.9 x 12.1 x 10.8 inches)
Weight Around 4.5 kg (9.9 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel 9560 11ac, 2x2 + BT5.0

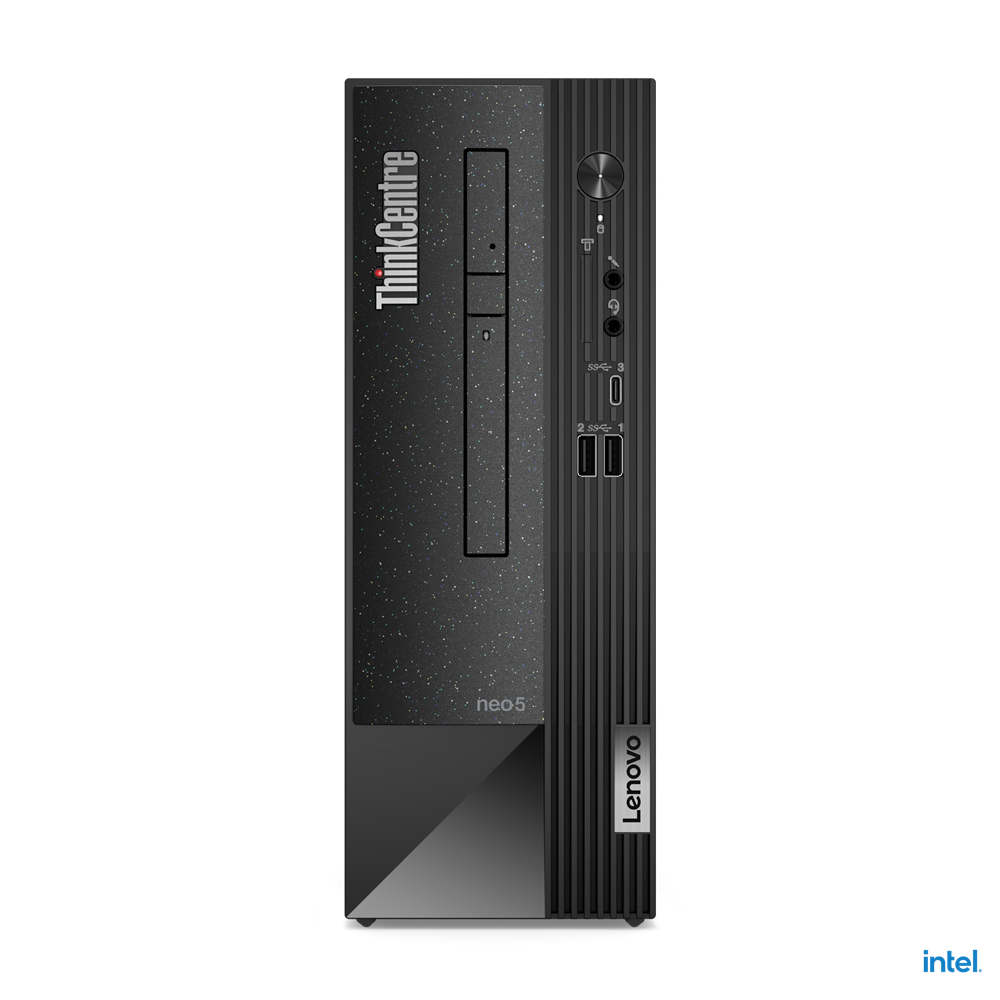

Front Ports • 2x USB 3.2 Gen 1
• 1x USB-C 3.2 Gen 1 (support data transfer and 5V@3A charging)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

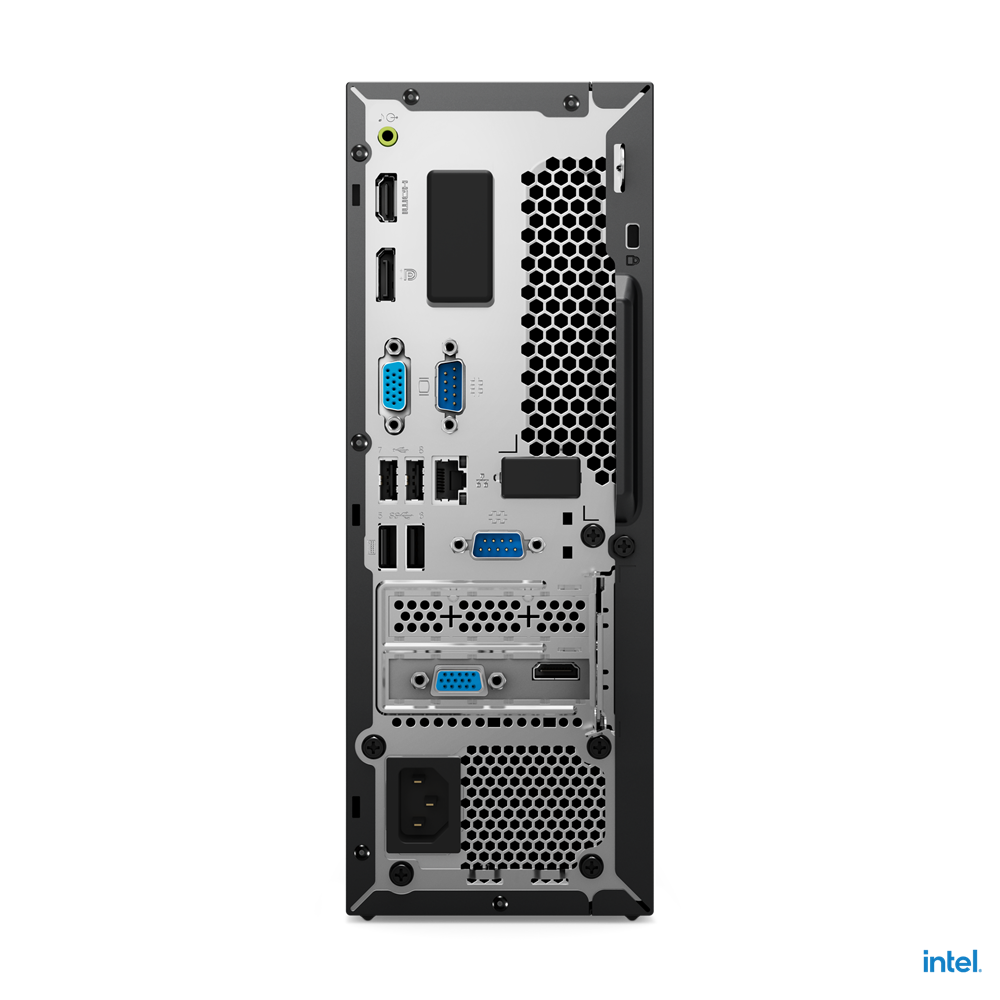

Rear Ports • 2x USB 2.0
• 2x USB 3.2 Gen 1 (one supports Smart Power On)
• 1x VGA
• 1x HDMI 2.1 TMDS
• 1x DisplayPort 1.4
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)
Optional Rear Ports (configured) None
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified
Fingerprint Reader No fingerprint reader
Physical Locks • Kensington Security Slot, 3 x 7 mm
• Padlock Loop
Kensington Cable Lock None
Smart Cable Clip None
Chassis Intrusion Switch None
SERVICE
Base Warranty 1-year, Depot
Included Upgrade 3Y Premier Support
