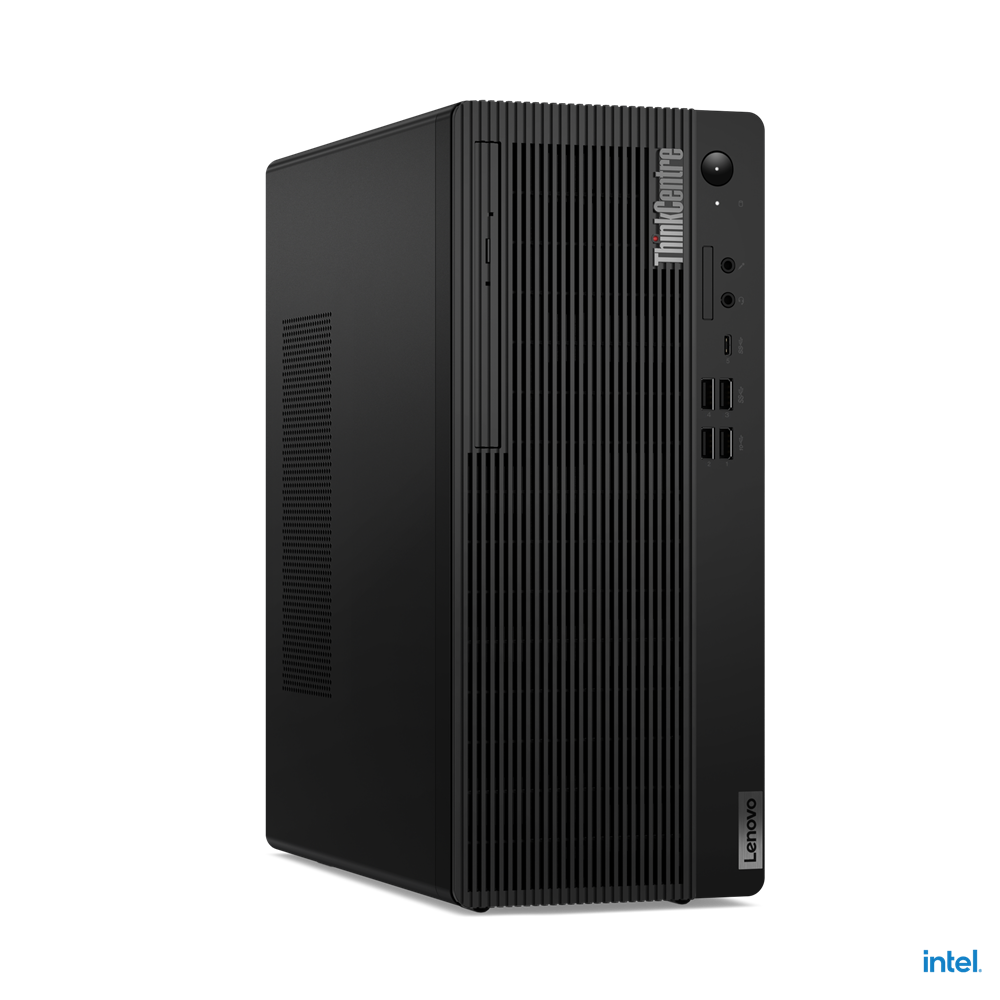

PERFORMANCE
Processor Intel Core i7-12700, 12C (8P + 4E) / 20T, P-core 2.1 / 4.8GHz, E-core 1.6 / 3.6GHz, 25MB
Graphics Integrated Intel UHD Graphics 770
Chipset Intel Q670 Chipset
Memory 1x 8GB UDIMM DDR4-3200
Memory Slots Four DDR4 DIMM slots, dual-channel capable
Max Memory Up to 128GB DDR4-3200
Storage 512GB SSD M.2 2280 PCIe 4.0x4 Value NVMe Opal
Storage Support Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB each • 3.5" HDD up to 2TB • M.2 SSD up to 2TB
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek ALC897Q-CG codec
Speakers 2Wx1
Power Supply 260W 90%
DESIGN
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots • One PCIe 4.0 x16, full-height, length ≤ 209mm, height ≤ 117.5mm
• Two PCIe 3.0 x1, full-height, length ≤ 185mm, height ≤ 110mm
• Two M.2 slots (one for WLAN, one for SSD)
Case Color Black
Stand No stand
Dust Filter None
Form Factor Tower (13.6L)
Dimensions (WxDxH) 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
Weight Around 5.9 kg (13.0 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth RTL8822CE 11ac, 2x2 + BT5.0
Front Ports • 2x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x USB-C 3.2 Gen 1 (15W charging)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

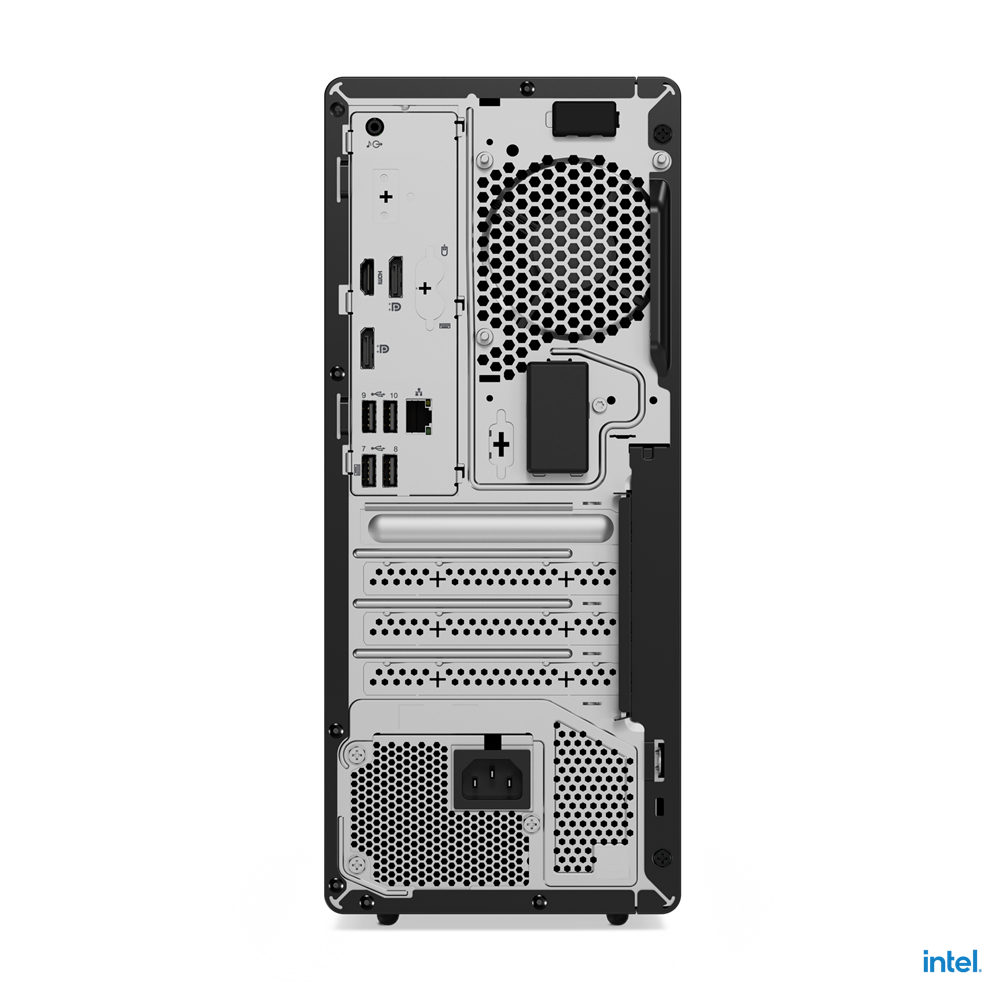

Rear Ports • 4x USB 2.0
• 1x HDMI 2.1 TMDS
• 2x DisplayPort 1.4
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)
Optional Rear Ports (configured) None
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified
Fingerprint Reader No fingerprint reader
Physical Locks • Kensington Security Slot, 3 x 7 mm
• Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Non-vPro
SERVICE
Base Warranty 1-year, Onsite
Included Upgrade 3Y Premier Support Upgrade from 1Y Onsite (5WS0T36147)
CERTIFICATIONS
Green Certifications • EPEAT Silver
• ENERGY STAR 8.0
• ErP Lot 3
• TCO Certified 9.0
• RoHS compliant
Other Certifications TÜV Rheinland Ultra Low Noise
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows 11 DG Windows 10 Pro 64, English
Bundled Software None
